Let’s do a little history. The concept of automatic feeding in aquaculture was born and developed in Norway in the early 1980s. The first equipment was developed in the environment of sea cage feeding and was very basic. This equipment consisted of a hopper with a capacity of less than 200 kg, a blower to send the feed to the cages and an auger screw to drive the feed from the silo.

Over the years, the evolution of technology in aquaculture and the demand for equipment with greater performance, new elements were appearing such as revolver type feed distributors and software that allowed greater control over feeding.

These CENTRALISED systems for aquaculture consist of a central station where the silos and all the (AUTOMATIC) dosing, distribution and control elements are located. The distribution of the feed to the different tanks is done by means of a fluid (typically air in the PNEUMATIC systems) that flows through pipes.

In the beginning and until the first decade of this century these systems were an adaptation to land of the feeding systems used in the aquaculture sea. It is at the early part of this decade, with the evolution of robotics and artificial intelligence, that new feeding systems fully designed and optimized for land-based and RAS fish farming systems.

Silos for Feed Storage in Automatic Aquaculture Feeding System

Silos, as components of feed storage, vary in number and capacity according to the needs of aquaculture.

  • They can be manufactured in various types of material (stainless steel, galvanized, fiberglass, polyethylene, etc) and must be certified for food purposes.
  • They can be standard or custom-made silos.
  • An angle at the bottom ensuring that the feed falls easily is recommended.
Prefab silos aquaculture feeding systems. Fish Farm Feeder

Prefab Silos

Custom made Silos aquaculture feeding systems. Fish Farm Feeder

Custom-made Silos

Dosifier for Automatic Feeder

Two dosing systems are usually used for feed dosage in aquaculture fish farms: Gravimetric and Volumetric.

  • Gravimetric systems are based on weighing the doses by means of one or more electronic load cells. The only unit of measurement is weight.
  • In volumetric systems the dosage is made according to the volume. In such systems, it is essential to calibrate the dosing element according to the type and size of feed to be used. It is necessary to establish what quantity of mass the dosing element has to dose in a defined period of time. When feed and batch are changed calibration should be carried out.

Depending on the manufacturer, different types of volumetric dosing units can be found. The most common ones are DOSERS and AUGER SCREWS.

Doser aquaculture feeding systems. Fish Farm Feeder


Auger Screw aquaculture feeding systems. Fish Farm Feeder

Auger Screw

The auger screw based system is the most widely adopted to achieve accurate dosing of feed from the hopper. The very thrust of the auger is what makes the precise amount fall into an intermediate hopper, and it is in such compartment where the various portions of several hoppers (up to four) converge to achieve the feed mixture defined by the fish farmer. This functionality allows different sizes of pellets and/or types of feed to be included in one dosage at the same time in a certain proportion. A rotary valve or shutoff located downstream of the intermediate hopper allows the already dosed feed to be regularly introduced into the feed line, avoiding clogging.

Selector for Feeding Distribution in Fish Farms

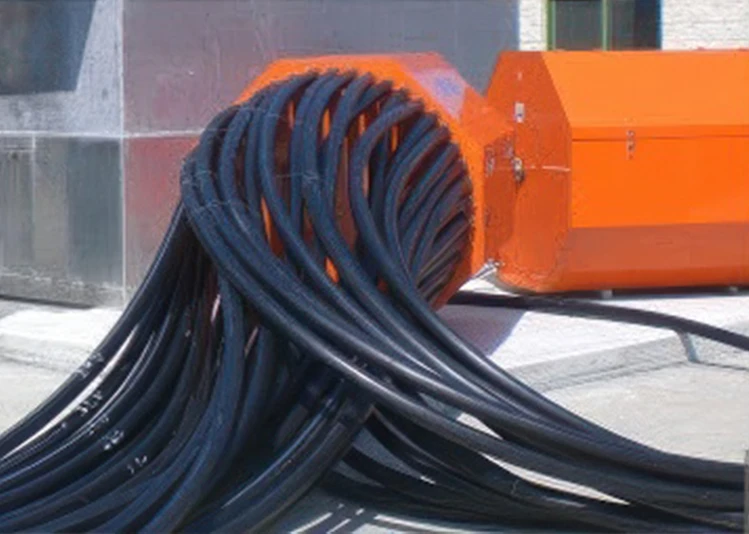

The selector is the device that aims to distribute the feed to the different fish farm tanks by selecting an outlet, which is linked to the tank by means of an HDPE pipe.

Here we find two types of selectors:

  • The “REVOLVER” which is a system where the outlets are placed in a circle and the selection of the mouth is done by a motor with a reducer
  • The “MATRIX”, where the outputs are placed in a matrixial way and the selection of the port is done by two servo motors, one on the X axis and the other on the Y axis.
Selector type revolver and matrix aquaculture feeding systems
Selector types aquaculture feeding systems. Fish Farm Feeder
Typical revolver aquaculture feeding systems. Fish Farm Feeder
Typical matrix aquaculture feeding systems. Fish Farm Feeder

Advantages of MATRIZ vs. REVOLVER

These are the main advantages of Matrix Selectors.

  • MORE TANKS Taking a pipe diameter of 32mm as a reference, if we have 60 outlets on a revolver in a matrix system we will have 180 outlets. Less space, which gives it greater robustness.
  • MORE SPEED The movement in the revolver mechanisms is rotary while in the matrix system it can be in the X or Y axis or diagonal (at the same time in the X and Y axis) obtaining a speed of displacement between outputs up to 3 times faster.
  • LOW MAINTENANCE Less maintenance due to design.

Feed Transfer Pipe used in Aquaculture

The pipe used to deliver the feed from the selector to the distributor is usually made of HDPE to increase its durability against abrasion wear. The pipe must have a high enough section to minimize the pressure loss and to prevent the feed from acquiring a high speed that could cause it to deteriorate. Another important point is to avoid sharp bends in its installation, which should be as straight as possible.

Control Systems - PLC

To control all the elements of the feeding system, PLCs are used together with frequency variators that allow modifying the rotation speeds of dosers and blowers according to the quantity requested and the distance that the feed has to travel to the feeding point. The handling of these parameters programmed from the software means that the distribution of the feed is optimised in terms of quantity and time without damaging the pellet.

Control Board aquaculture feeding systems. Fish Farm Feeder

Control Board

The new feeding systems also allow to integrate oxygen sensors that enable to automatically adapt the feeding according to the oxygen level in the tank, temperature sensors, pH and any other parameter that needs to be monitored to help obtain a full automatic fishing farming.

Blower for Pneumatic Transport of Feed in Automatic Feeders

Blowers and compressors are the devices that generate the fluid (air) used to transfer the feed from the dosing components to the tanks. This transportation must be done as smoothly as possible to avoid damage to the feed, but at the same time to avoid clogging the pipes that carry the feed.

In order to control the flow of air into the pipe and thus control the speed at which the feed flows through the pipe, frequency variators are used. With these variators, the speed of rotation is regulated.

Blower aquaculture feeding systems. Fish Farm Feeder

An air cooler and/or dryer is usually installed at the blower outlet to prevent damage to the feed due to the temperature the air reaches when compressed.

Disperser - Spreader for Automatic Feeders for Fish Farming

The spreader is used to disperse the food in the tank. This is located at the end of the pipe that brings the food. Its main function, besides throwing the pellet, is to distribute it in a homogeneous way.

Spreaders by tank type aquaculture feeding systems

Spreaders by tank type

Software - Aquaculture Technology Applied to Feeding

So important as having a feeding system is having a program that allows us to manage all the feeding parameters, so that we can manage feeding plans tailored to the fish farmer and integrate it with the farm management software.

Integration with mobile devices such as smartphones or tablets is another requirement that any feeding system should offer.

Why an Automatic Feeding System?

The implementation of this type of system in aquaculture provides a number of benefits:

  • Improved RCF
  • Decrease in size dispersion
  • Increased growth rates
  • Reduction of wasted feed
  • Significant savings in manpower
  • Low maintenance costs
  • Programming and total control by software
  • Monitoring by computer or smartphone or tablet (App)
  • Software can be integrated with the farm management program
  • Integration of sensors (dissolved oxygen, temperature, pH, etc.)
  • Feed and Batch Traceability
